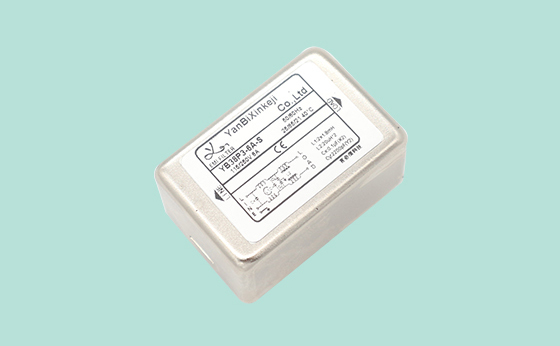

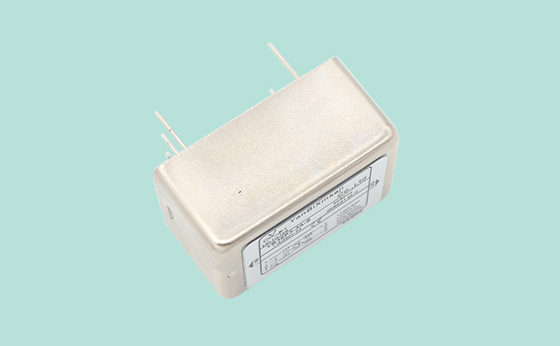

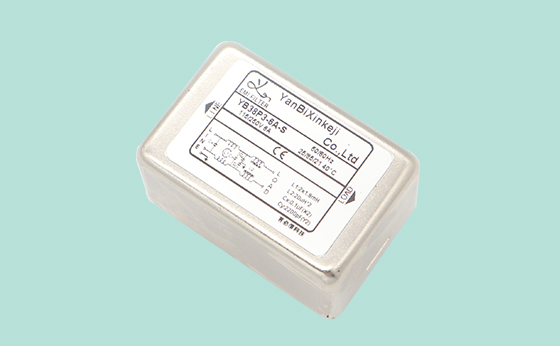

Technical Data 技術參數

Features 產品特點

Can be used to cover a broad range of usage and they offer a good size/amperage

--緊湊的體積，能夠應用在各種場合中。

Very high differential and common-mode attenuation

優異的差模和共模衰減

PCB through hole mounting.

--PCB通孔安裝

There are a variety of parts and combinations to meet different customers' EMC tests

--有多種零件組合搭配，來滿足不同客戶整機EMC測試

Customized products according to customers' requirements

--可按客戶要求定制不同規格產品

Typical Applications 應用范圍

Electrical and electronic equipment

--電子電氣設備

Medical equipment

--醫療設備

Single-phase power supplies, switch-mode power supplies

--單相電源，開關模式電源

Small to medium-sized machines and?household equipment

--中小型機械設備和家用設備

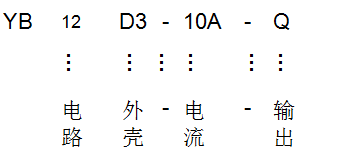

命名原則說明

Tabulates 產品列表

Model No.

Rated Current @40°C 額定電流

Terminal Options 輸出方式

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)  額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB38P3-1A-S

1A

-

S

-

<0.8mA

Fig.3

115/250

50/60

YB38P3-3A-S

3A

-

S

-

Fig.3

YB38P3-6A-S

6A

-

S

-

Fig.3

醫療專用產品列表

Model No.

Rated Current @40°C 額定電流

Terminal Options 輸出方式

Medical equipment 醫療專用 5

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V) 額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB38P3-1A-S(5)

1A

-

S

-

5

<5uA

Fig.6

115/250

50/60

YB38P3-3A-S(5)

3A

-

S

-

5

Fig.6

YB38P3-6A-S(5)

6A

-

S

-

5

Fig.6

        *Q: Fast-on 6.35x0.8mm   S: Pin Φ1.0mmW: Wire UL1015 18AWG

Electrical schematic 電路圖
 Standard type

                          Fig.1                                                                                Fig.2

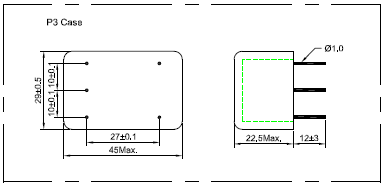

Mechanical Dimension外形圖(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)

——————    共模(common mode)             — — — — —   差模(differential mode)

                          1A                                                            3A

                            6A
