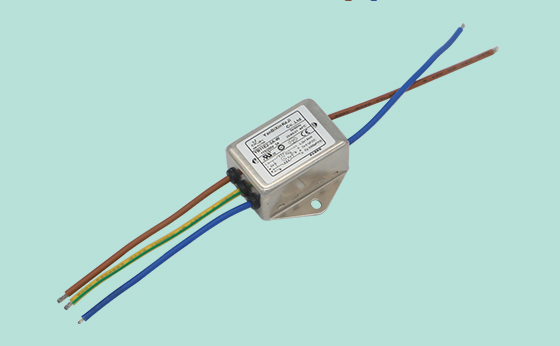

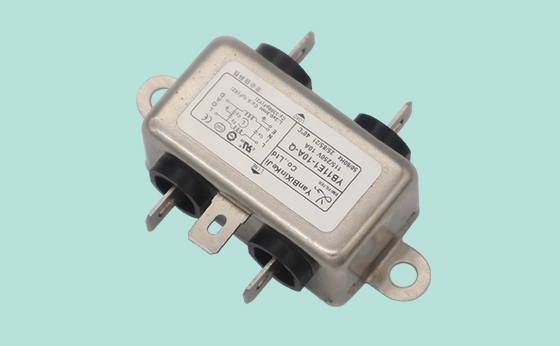

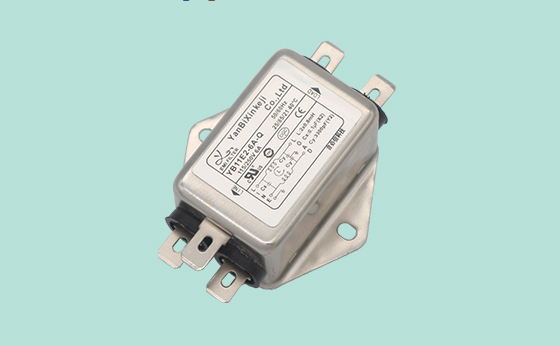

Technical Data 技術參數

Features 產品特點

Can be used to cover a broad range of usage and they offer a good size/amperage

--緊湊的體積，能夠應用在各種場合中。

YB11 filters are also available as two-stage filters(YB35) for more noisy environmment

--YB11系列濾波器也可以串2個當做YB35系列產品使用在嘈雜環境中。

There are a variety of parts and combinations to meet different customers' EMC tests

--有多種零件組合搭配，來滿足不同客戶整機EMC測試

Customized products according to customers' requirements

--可按客戶要求定制不同規格產品

Typical Applications 應用范圍

Electrical and electronic equipment

--電子電氣設備

Medical equipment

--醫療設備

Single-phase power supplies, switch-mode power supplies

--單相電源，開關模式電源

Small to medium-sized machines and?household equipment

--中小型機械設備和家用設備

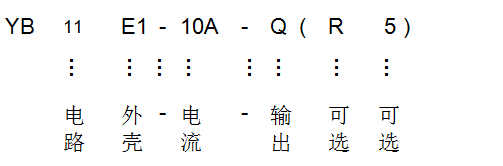

命名原則說明

Tabulates 產品列表

Model No.

Rated Current @40°C 額定電流

Terminal Options* 輸出方式

Bleeder resistor (optional) 泄放電阻R(可選)

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)     額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB11E1-1A

1A

Q

-

W

-

<0.8mA

Fig.1

115/250V

50/60Hz

YB11E1-3A

3A

Q

-

W

-

Fig.1

YB11E1-6A

6A

Q

-

W

-

Fig.1

YB11E1-8A

8A

Q

-

W

-

Fig.1

YB11E1-10A

10A

Q

-

W

-

Fig.1

YB11E2-1A

1A

-

-

W

-

Fig.1

YB11E2-3A

3A

-

-

W

-

Fig.1

YB11E2-6A

6A

-

-

W

-

Fig.1

YB11E2-8A

8A

-

-

W

-

Fig.1

YB11E2-10A

10A

-

-

W

-

Fig.1

YB11E3-1A

1A

Q

-

W

-

Fig.1

YB11E3-3A

3A

Q

-

W

-

Fig.1

YB11E3-6A

6A

Q

-

W

-

Fig.1

YB11E3-8A

8A

Q

-

W

-

Fig.1

YB11E3-10A

10A

Q

-

W

-

Fig.1

醫療專用產品列表

Model No.

Rated Current @40°C 額定電流

Terminal Options 輸出方式

Bleeder resistor(optional) 泄放電阻R(MΩ)

Medical equipment 醫療專用 5

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)     額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB11E1-1A-x(5)

1A

Q

-

W

1

5

<5μA

Fig.2

115/250V

50/60Hz

YB11E1-3A-x(5)

3A

Q

-

W

1

5

Fig.2

YB11E1-6A-x(5)

6A

Q

-

W

1

5

Fig.2

YB11E1-8A-x(5)

8A

Q

-

W

1

5

Fig.2

YB11E1-10A-x(5)

10A

Q

-

W

1

5

Fig.2

YB11E2-1A-x(5)

1A

-

-

W

1

5

Fig.2

YB11E2-3A-x(5)

3A

-

-

W

1

5

Fig.2

YB11E2-6A-x(5)

6A

-

-

W

1

5

Fig.2

YB11E2-8A-x(5)

8A

-

-

W

1

5

Fig.2

YB11E2-10A-x(5)

10A

-

-

W

1

5

Fig.2

YB11E3-1A-x(5)

1A

Q

-

W

1

5

Fig.2

YB11E3-3A-x(5)

3A

Q

-

W

1

5

Fig.2

YB11E3-6A-x(5)

6A

Q

-

W

1

5

Fig.2

YB11E3-8A-x(5)

8A

Q

-

W

1

5

Fig.2

YB11E3-10A-x(5)

10A

Q

-

W

1

5

Fig.2

*Q: Fast-on 6.35x0.8mm    S: solder 4.0x0.8mm      W: Wire UL1015 18AWG

Electrical schematic 電路圖
                    Standard type                                             R5 type

                         Fig.1                                                       Fig.2

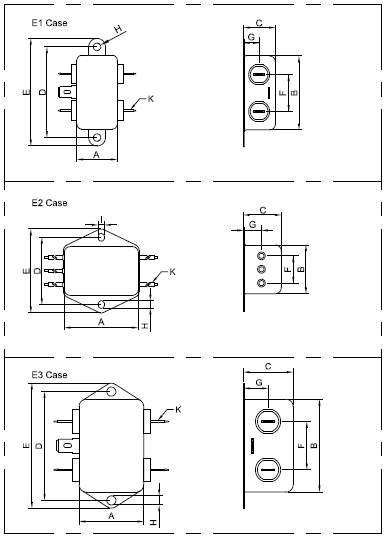

Mechanical Dimension外形圖(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)

——————    共模(common mode)             — — — — —   差模(differential mode)

                          1A                                                                            3A

                          6A                                                                          8A

                          10A
