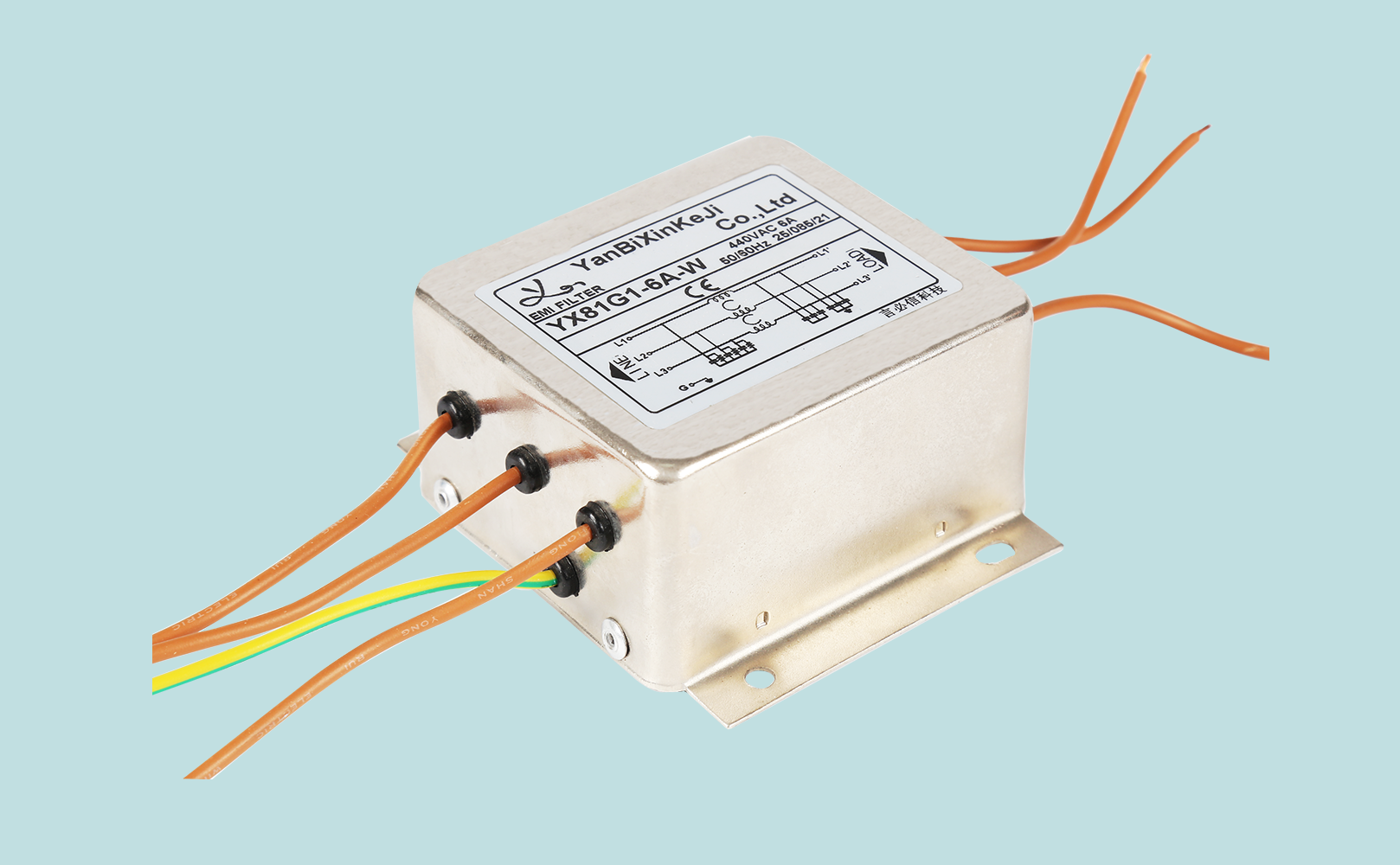

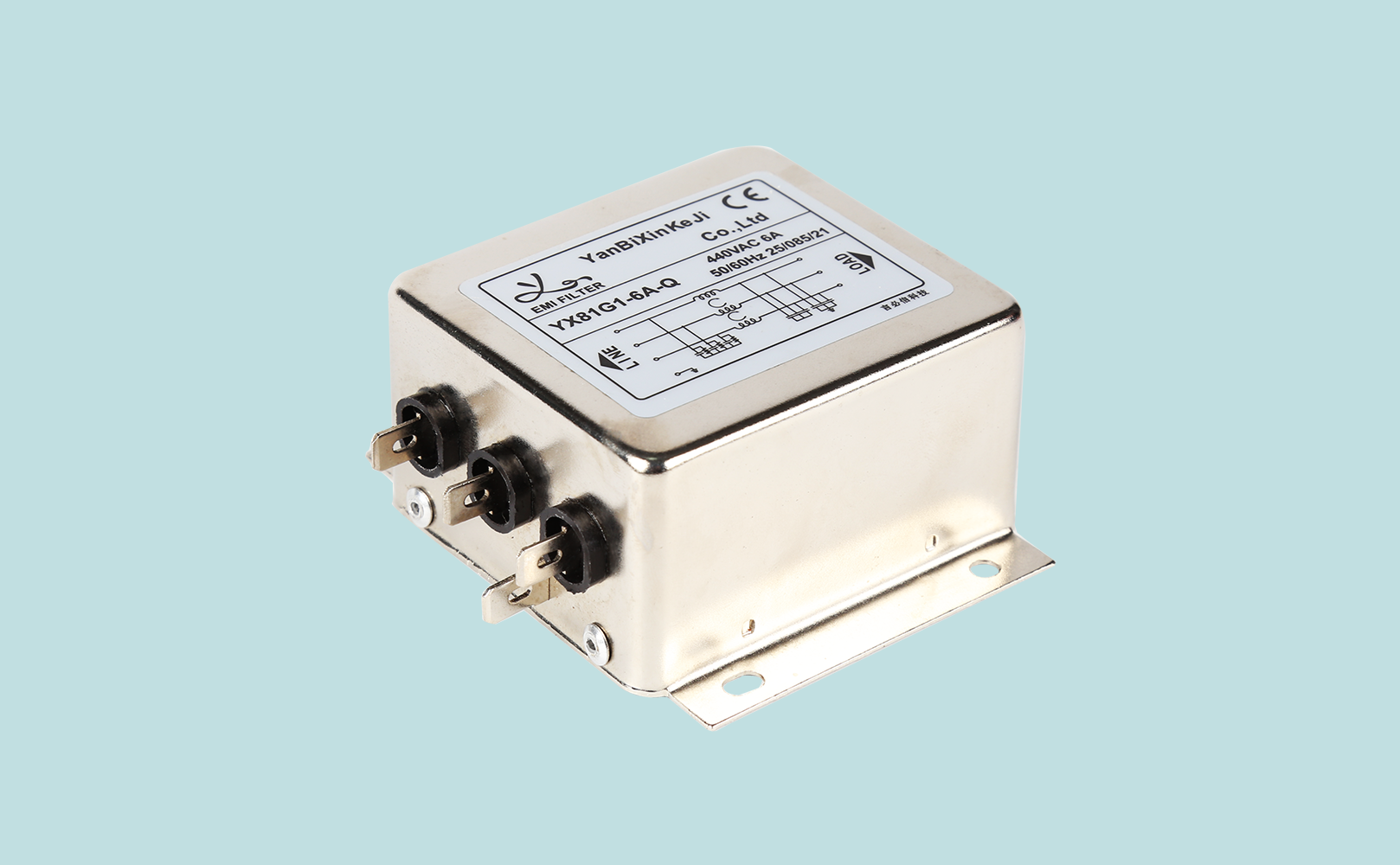

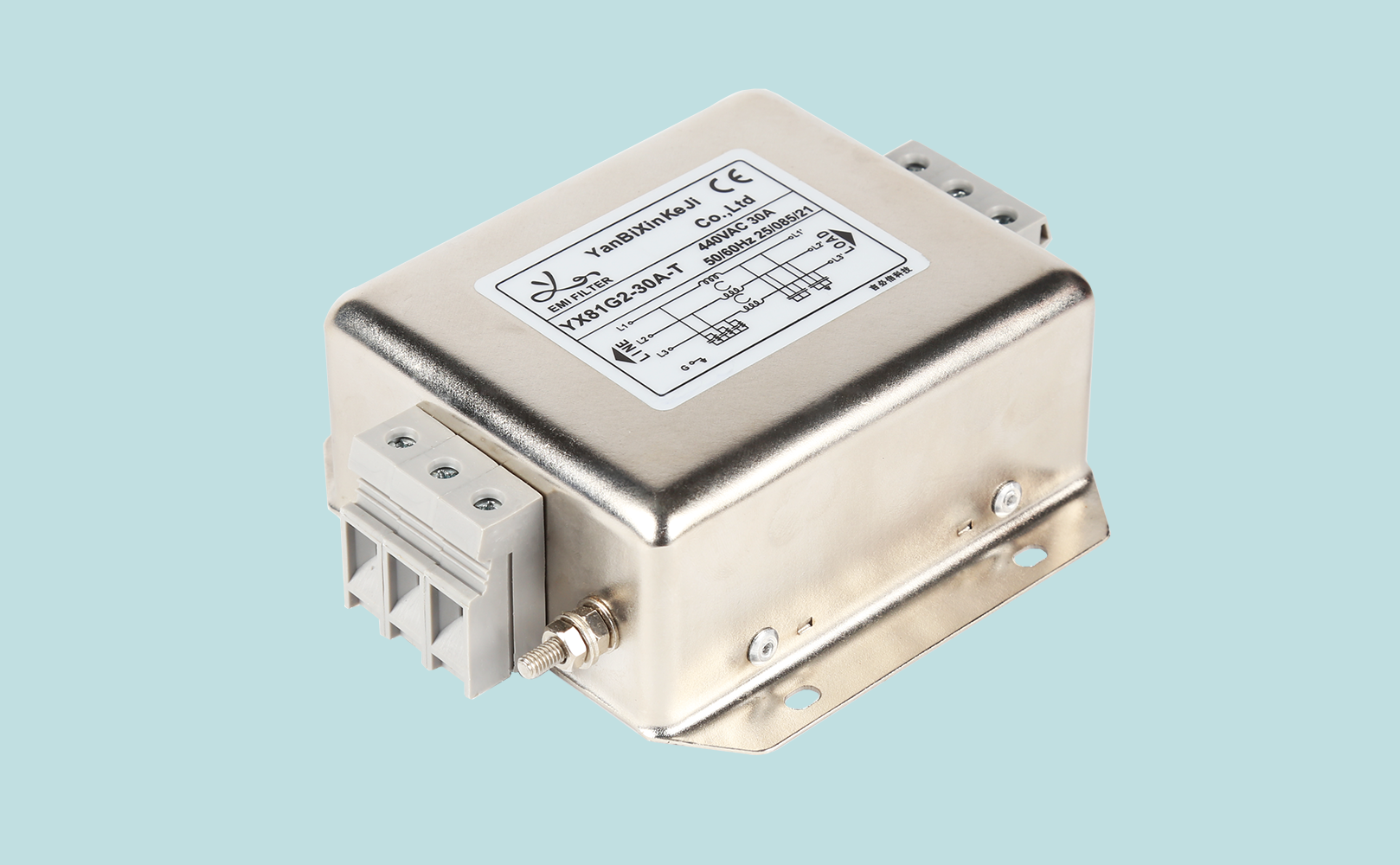

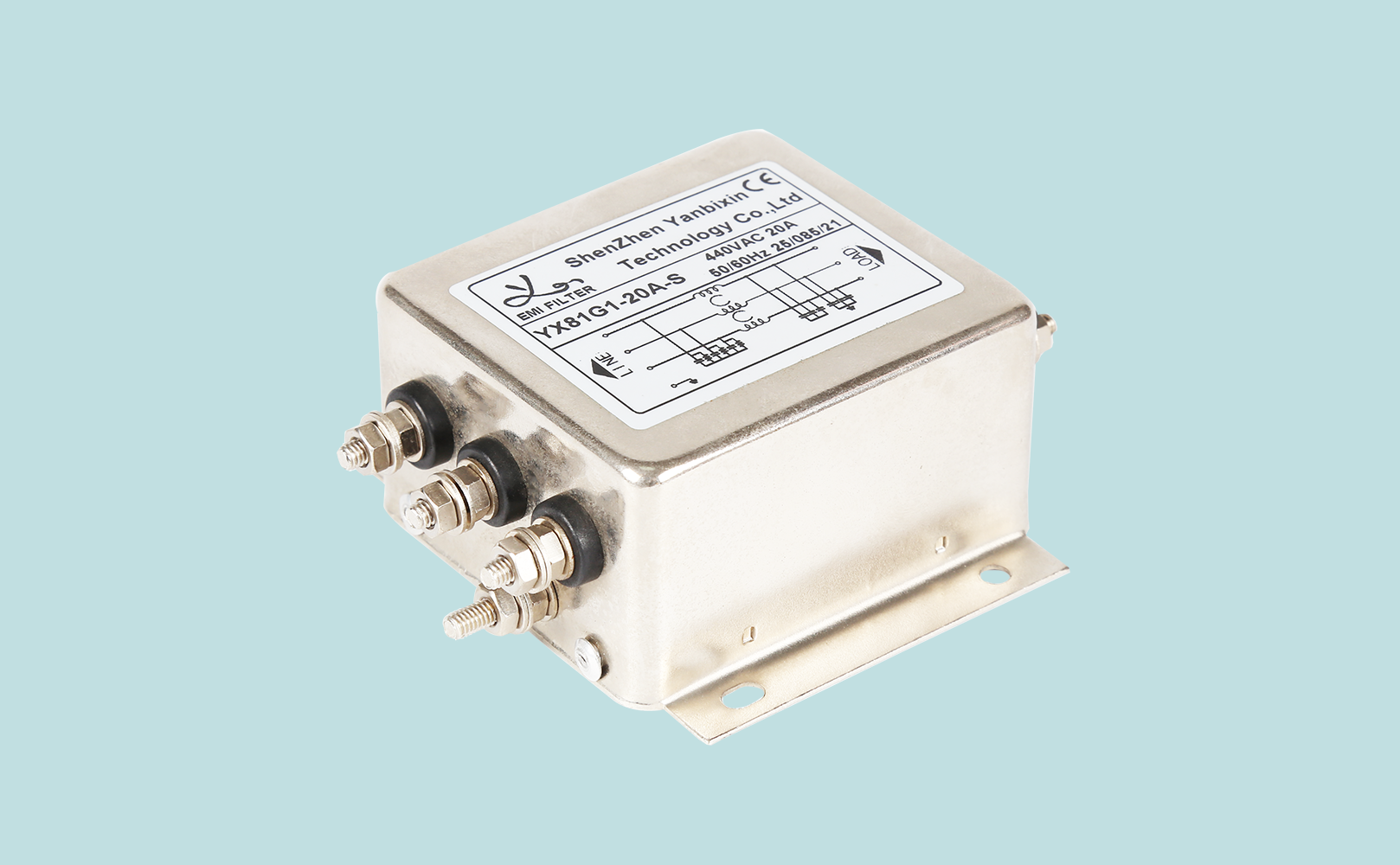

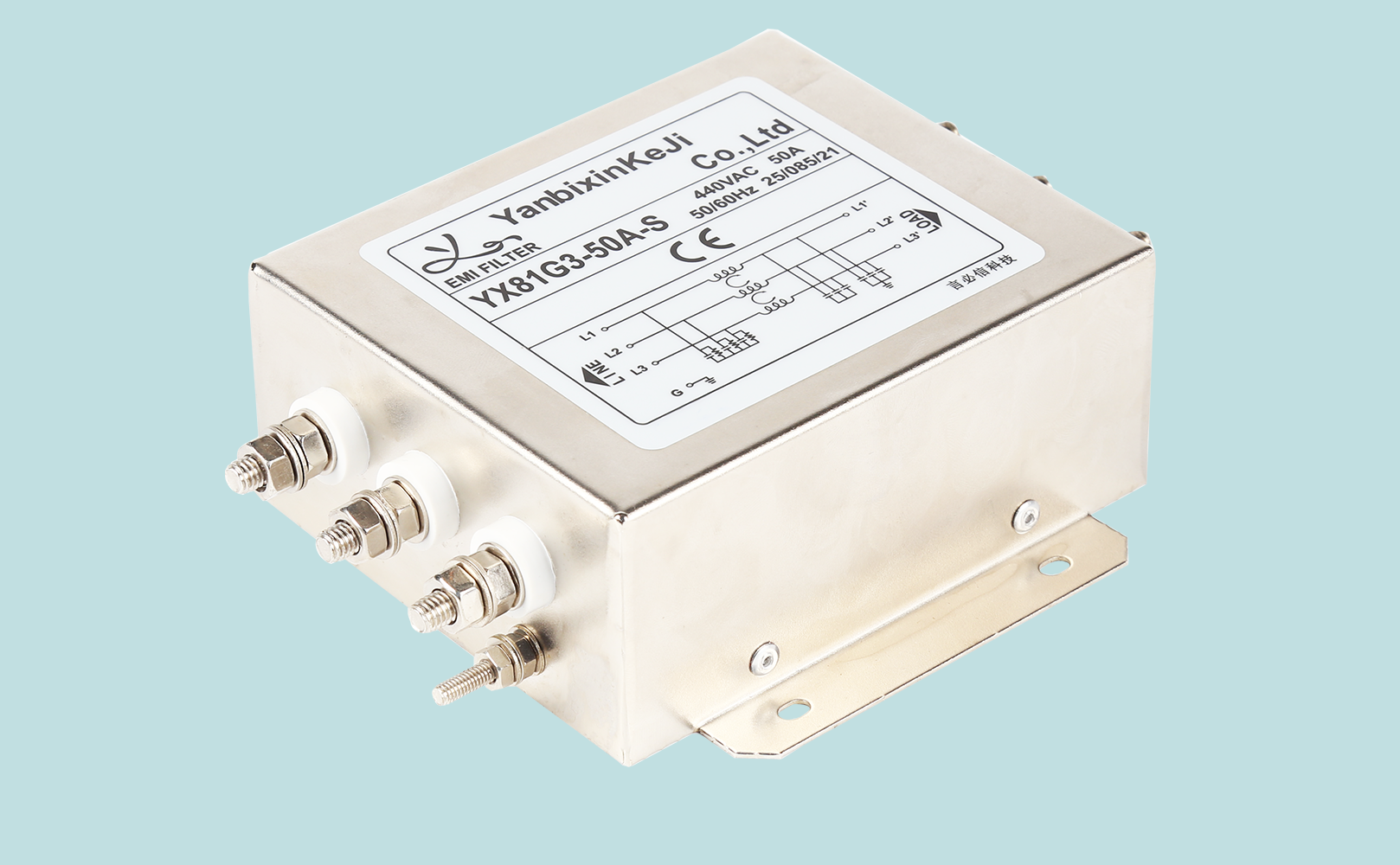

Technical Data 技術參數

Protection against interference voltage from the maims

--防止干擾電壓

YX81 filters provide a broadband common and differential-mode attenuation performance, which remains available also when high interference levels are present

--YX81系列濾波器提供寬頻的差模和共模衰減，當較大干擾時，產品仍有較好的效果

Customized products according to customers' requirements

--可按客戶要求定制不同規格產品

Typical Applications 應用范圍

For photovoltaic systems and industrial applications

--光伏系統和工業應用

Three-phase motor drives

--三相電機

UPS/SMPS

--UPS/開關電源

Industrial automation equipment

--工業自動化設備

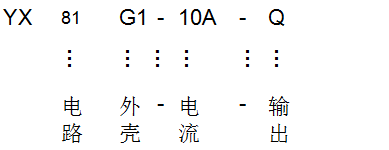

命名原則說明



Tabulates 產品列表

Model No.

Rated Current @40°C 額定電流

Terminal Options* 輸出方式

Leakage current  440V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)     額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YX81G1-1A

1A

Q

S

T

<1.0mA

Fig.1

250/440V

50/60Hz

YX81G1-3A

3A

Q

S

T

Fig.1

YX81G1-6A

6A

Q

S

T

Fig.1

YX81G1-10A

10A

Q

S

T

Fig.1

YX81G1-20A

20A

Q

S

T

Fig.1

YX81G1-30A

30A

-

S

T

Fig.1

YX81G2-30A

30A

-

S

T

<2.0mA

Fig.1

YX81G2-40A

40A

-

S

T

Fig.1

YX81G3-40A

40A

-

S

T

<5.0mA

Fig.1

YX81G3-50A

50A

-

S

T

Fig.1

YX81G3-60A

60A

-

S

T

Fig.1

YX81G5-80A

80A

-

S

T

<7.0mA

Fig.1

YX81G5-100A

100A

-

S

T

Fig.1

YX81G6-200A

200A

-

S

T

<10.0mA

Fig.1

*Q: Fast-on 6.35x0.8mm      S: Screw lug     W: Wire UL1015 18AWG

Electrical schematic 電路圖

                            Standard type

                                Fig.1

Mechanical Dimension外形圖(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)

 ——————    共模(common mode)             — — — — —   差模(differential mode)

                           6/10A                                                     20A

                          30A                                                        40/50A

                         100/200A
