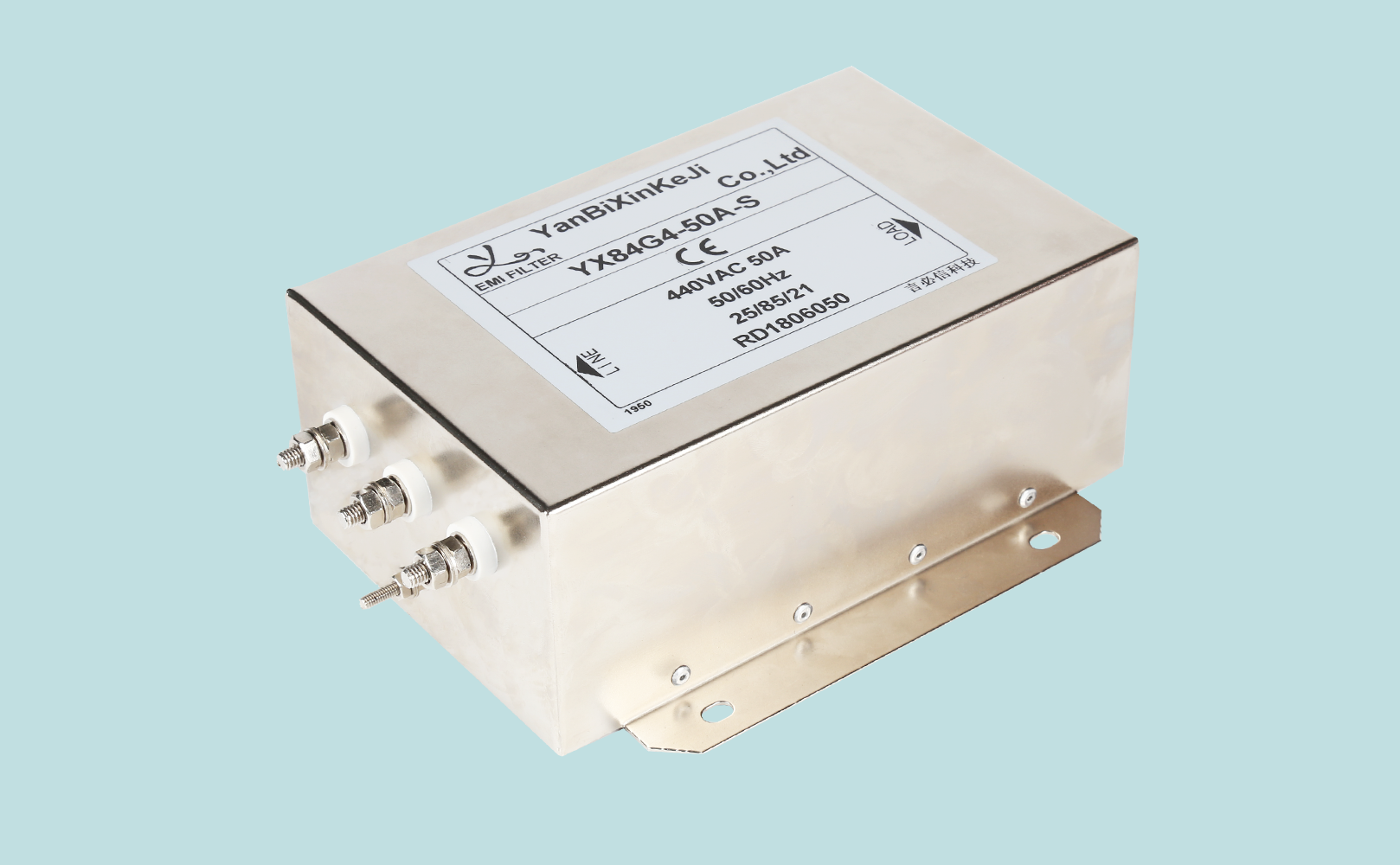

Approvals(認證):

Technical Data 技術參數

Features 產品特點

With three stage filter design, special materials guarantee high impedance characteristics in wide frequency range

 --采用三級濾波設計，特殊的材料可保證寬泛的頻率范圍內的高阻抗特性

Assure the smooth operation of other electronic devices in the vicinity, solve the interference problems of inverter.

--保證變頻器周邊其他電子設備的平穩運行，解決變頻器的干擾問題。

Copper bar terminals applied for versions above 250A to keep pace with international standard, easy and safe connection

--銅牌適用于250A以上的版本，以適應國際標準、簡單和安全的連接。

Customized products according to customers' requirements

--可按客戶要求定制不同規格產品

Typical Applications 應用范圍

Suitable for most brands of inverters

--適用于絕大多數品牌的變頻器

Servo motor

--伺服電機

dv/dt limitation

--dv/dt抑制

Industrial electronic equipment using frequency conversion principle

--采用變頻原理工作的工業電子設備

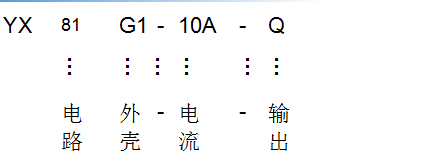

命名原則說明

Tabulates 產品列表

Model No.

Rated Current @40°C 額定電流

Terminal  Options* 輸出方式

Leakage current  440V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)   額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YX84G1-3A-XL

3A

-

S

T

<5.0mA

Fig.1

250/440V

50/60Hz

YX84G2-6A-XL

6A

-

S

T

Fig.1

YX84G2-10A-XL

10A

-

S

T

Fig.1

YX84G2-15A-XL

15A

-

S

T

Fig.1

YX84G3-20A-XL

20A

-

S

T

Fig.1

YX84G3-25A-XL

25A

-

S

T

Fig.1

YX84G3-30A-XL

30A

-

S

T

Fig.1

YX84G5-30A-XL

30A

-

S

T

Fig.1

YX84G5-40A-XL

40A

-

S

T

Fig.1

YX84G5-50A-XL

50A

-

S

T

Fig.1

YX84G4-50A-XL

50A

-

S

T

<7.0mA

Fig.1

YX84G4-60A-XL

60A

-

S

T

Fig.1

YX84G4-80A-XL

80A

-

S

T

Fig.1

YX84G6-100A-XL

100A

-

S

T

<10.0mA

Fig.1

YX84G6-120A-XL

120A

-

S

T

Fig.1

YX84G6-150A-XL

150A

-

S

T

Fig.1

YX84G6-180A-XL

180A

-

S

T

Fig.1

YX84G6-200A-XL

200A

-

S

T

Fig.1

YX84G8-300A-XL

300A

B

-

-

<20.0mA

Fig.1

YX84G8-400A-XL

400A

B

-

-

Fig.1

YX84G8-630A-XL

630A

B

-

-

Fig.1

YX84G9-800A-XL

800A

B

-

-

Fig.1

YX83G9-1000A-XL

1000A

B

-

-

Fig.1

YX83G9-1200A-XL

1200A

B

-

-

Fig.1

*B: Copper barS  : solder 4.0x0.8mm  T: Terminal block

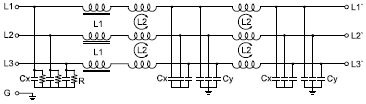

Output filter circuit 輸出濾波器工作原理圖

                                        Fig.1

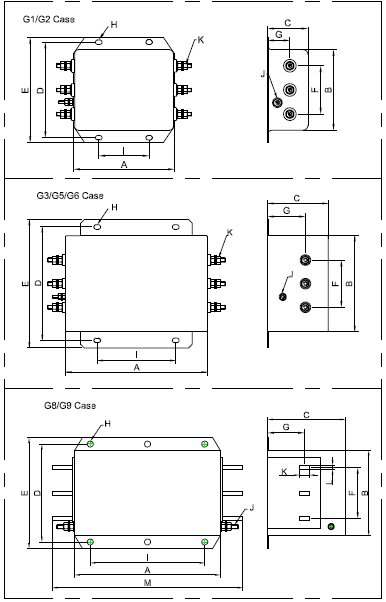

Mechanical Dimension外形圖(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)

——————    共模(common mode)             — — — — —   差模(differential mode)

                           6/10A                                                    20A

                           30A                                                         50A

                           80A                                                         100A

                            200A
