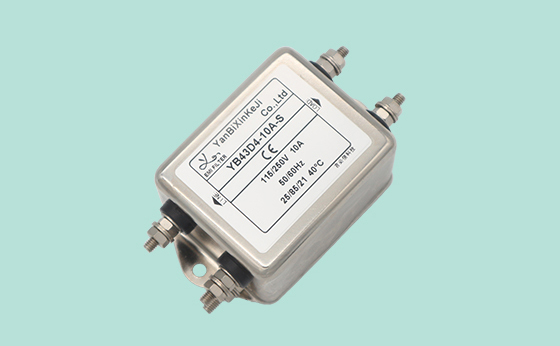

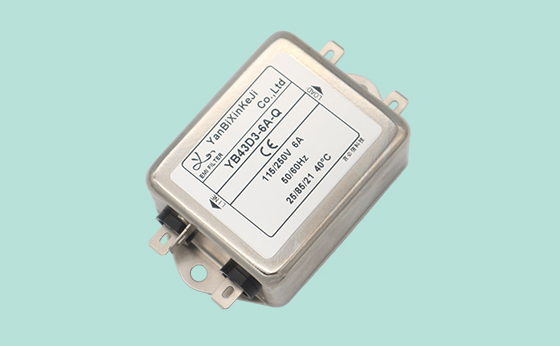

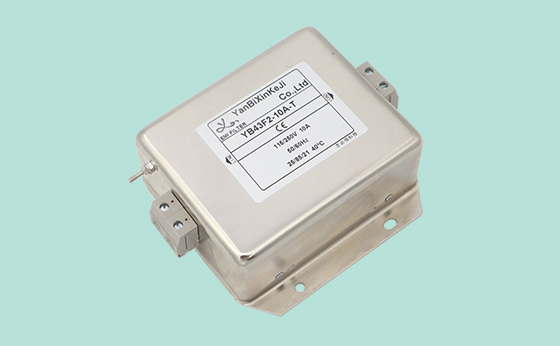

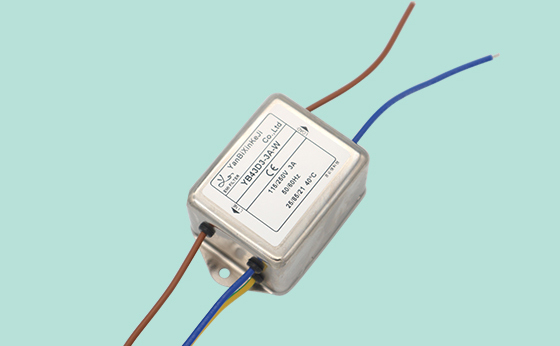

Rated currents from 1 to 30A
額定電流1~30A
Designed for increased requirements
加強濾波設計
Very high differential and common-mode attenuation
優異的差模和共模衰減
Technical Data 技術參數
| Max continuous operating voltage(最大電壓): | 250VAC,50/60Hz |
| Operating frequency(工作頻率): | DC to 400Hz |
| Rated currents(額定電流): | 1~30A@40°C |
| High potential test voltage(耐電壓): | L-N 1450VDC |
| L/N-G 2000VAC/2250VDC | |
| Climatic category(氣候類別): | -25°C~+85°C(25/85/21) |
| Design corresponding to(設計標準): | UL1283, CSA C22.2 No.8, |
| IEC/EN 60939, | |
| CQC GB 15288/GB 15287-2008 | |
| Flammability corresponding to(防火等級): | UL 94V-0 |
Features 產品特點
Using multi-stage filter circuit, with very good common mode and differential mode noise suppression, general purpose power line filter with fast-on/stud/wire terminals
--采用多級濾波電路，具有非常好的共模和差模噪聲抑制作用，有快速接線端子、螺栓或接線式可供選擇
Standard filters are a practical solution helping you to pass EMI system approval in a short time.
--標準濾波器是一種實用的解決方案，可以幫助您在短時間內通過EMI系統的測試
There are a variety of parts and combinations to meet different customers' EMC tests
--有多種零件組合搭配，來滿足不同客戶整機EMC測試
Customized products according to customers' requirements
--可按客戶要求定制不同規格產品
Typical Applications 應用范圍
Electrical and electronic equipment
--電子電氣設備
Consumer goods
--日用消費品
Medical equipment
--醫療設備
Industrial applications
--工業應用
Building automation
--建筑自動化
Office automation and datacom equipment
--辦公自動化設備和數據通訊設備
Various noisy applications requiring high filter performance
--需要高過濾性能的各種噪聲應用環境

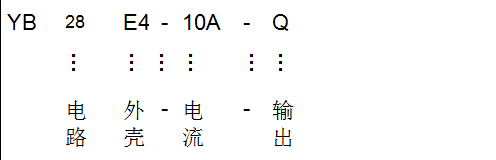

命名原則說明
Tabulates 產品列表
| Model No. |
Rated Current 額定電流 |
Terminal Options* |
Leakage current 250V/50Hz 漏電流 |
Electrical Schematic 電路圖 |
Rated Voltage(V) 額定電壓 |
Operating Frequency(Hz) 工作頻率 |
||||||||||||||||||||||||||||||
| 型號 | ||||||||||||||||||||||||||||||||||||
|
|
|
||||||||||||||||||||||||||||||||||
| YB43D3-1A | 1A | Q | S | W | <1.0mA | Fig.1 | 115/250V | 50/60Hz | ||||||||||||||||||||||||||||
| YB43D3-2A | 2A | Q | S | W | Fig.1 | |||||||||||||||||||||||||||||||
| YB43D4-3A | 3A | Q | S | W | Fig.1 | |||||||||||||||||||||||||||||||
| YB43D4-4A | 4A | Q | S | W | Fig.1 | |||||||||||||||||||||||||||||||
| YB43D4-6A | 6A | Q | S | W | Fig.1 | |||||||||||||||||||||||||||||||
| YB43D5-8A | 8A | Q | S | W | Fig.1 | |||||||||||||||||||||||||||||||
| YB43D5-10A | 10A | Q | S | W | Fig.1 | |||||||||||||||||||||||||||||||
| YB43D5-15A | 15A | Q | S | W | Fig.1 | |||||||||||||||||||||||||||||||
| YB43D6-10A | 10A | Q | S | W | Fig.1 | |||||||||||||||||||||||||||||||
| YB43D6-15A | 15A | Q | S | - | Fig.1 | |||||||||||||||||||||||||||||||
| YB43F2-20A | 20A | Q | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YB43F2-25A | 25A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
| YB43F3-30A | 30A | - | S | T | Fig.1 | |||||||||||||||||||||||||||||||
*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: Wire UL1015 18AWG
Electrical schematic 電路圖
Standard type
Fig.1

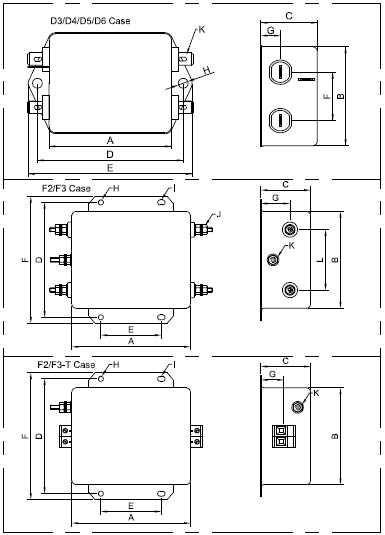

Mechanical Dimension外形圖(Unit: mm)
| Case | D3 | D4 | D5 | D6 | F2 | F3 |
Tolerances 公差 |
|||||||||||||||||||
| A | 63 | 63 | 73 | 94 | 98 | 120 | ±1 | |||||||||||||||||||
| B | 51 | 51 | 56 | 55 | 80 | 100 | ±1 | |||||||||||||||||||
| C | 29 | 38 | 45 | 45 | 41 | 50 | ±1 | |||||||||||||||||||
| D | 75 | 75 | 87 | 104 | 95 | 115 | ±0.15 | |||||||||||||||||||
| E | 85 | 85 | 98 | 118 | 50 | 80 | ±1 | |||||||||||||||||||
| F | 25 | 27 | 30 | 30 | 50 | 60 | ±0.5 | |||||||||||||||||||
| G | 10 | 15.5 | 16 | 15 | 24 | 26 | ±0.5 | |||||||||||||||||||
| H | 5 | 4.5 | 4.5 | 4.5*6 | 4.2 | 4*6 | ±0.15 | |||||||||||||||||||
| I | 4.2*6.2 | 4*6 | ±0.15 | |||||||||||||||||||||||
| J | M4/M6 | M4/M6 | ||||||||||||||||||||||||
| K | 6.3*0.8 | 6.3*0.8 | 6.3*0.8 | 6.3*0.8 | M4 | M4 | ±0.15 | |||||||||||||||||||
| L | 50 | 60 | ±2 | |||||||||||||||||||||||
Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)
—————— 共模(common mode) — — — — — 差模(differential mode)
15A 3A
8/10A 1A
6A
