Approvals(認證):

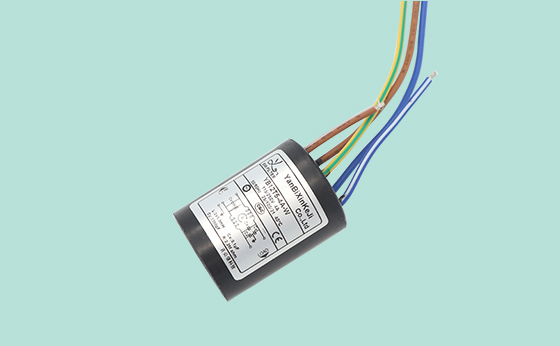

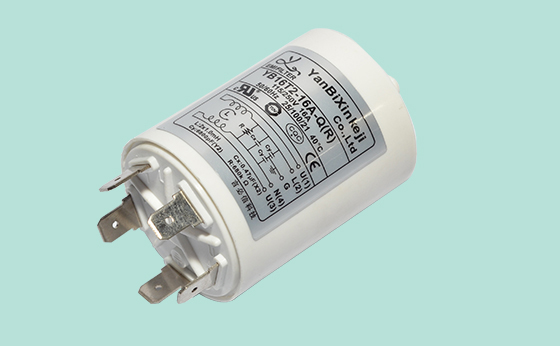

Technical Data 技術參數

Easy to install with stud type or bracket type for assembly

--安裝簡單，可以搭配支架或卡扣設計

There are a variety of parts and combinations to meet different customers' EMC tests

--有多種零件組合搭配，來滿足不同客戶整機EMC測試

Customized products according to customers' requirements

--可按客戶要求定制不同規格產品

Typical Applications 應用范圍

Washing machine

--洗衣機

Coffee machine

--咖啡機

Vending machine

--自動販賣機

Dish washer and other white goods

--洗碗機和其他家用電器

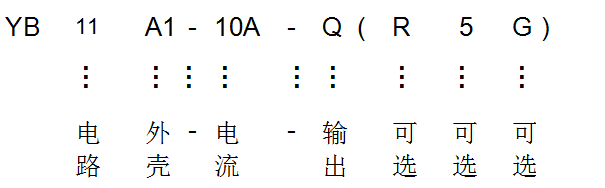

命名原則說明

Tabulates 產品列表

Model No.

Rated Current @40°C 額定電流

Terminal Options 輸出方式

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)  額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB16T1-1A

1A

Q

-

W

<0.8mA

Fig.1

115/250V

50/60Hz

YB16T1-4A

4A

Q

-

W

Fig.1

YB16T1-10A

10A

Q

-

W

Fig.1

YB16T2-6A

6A

Q

-

W

Fig.1

YB16T2-10A

10A

Q

-

W

Fig.1

YB16T2-16A

16A

Q

-

W

Fig.1

YB16T3-6A

6A

Q

-

W

Fig.1

YB16T3-10A

10A

Q

-

W

Fig.1

YB16T3-16A

6A

Q

-

W

Fig.1

YB16T4-6A

1A

Q

-

W

Fig.1

YB16T4-10A

3A

Q

-

W

Fig.1

YB16T4-16A

6A

Q

-

W

Fig.1

YB12T5-4A

4A

Q

-

W

Fig.2

YB12T5-6A

6A

Q

-

W

Fig.2

 *Q: Fast-on 6.35x0.8mm     S: solder 4.0x0.8mm      W: Wire UL1015 18AWG

Electrical schematic 電路圖

                         Standard type                                                       5 type

                                 Fig.1                                                                 Fig.2

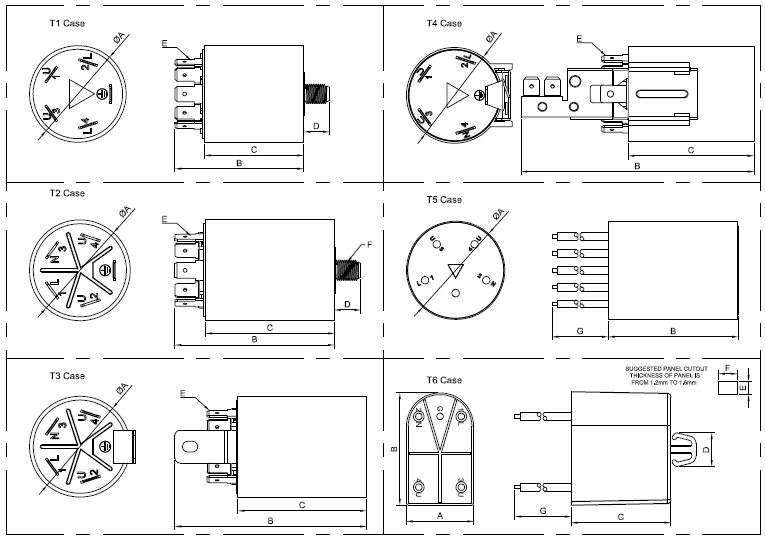

Mechanical Dimension外形圖(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)

 ——————    共模(common mode)             — — — — —   差模(differential mode)

                            10A                                                        16A
