Technical Data 技術參數

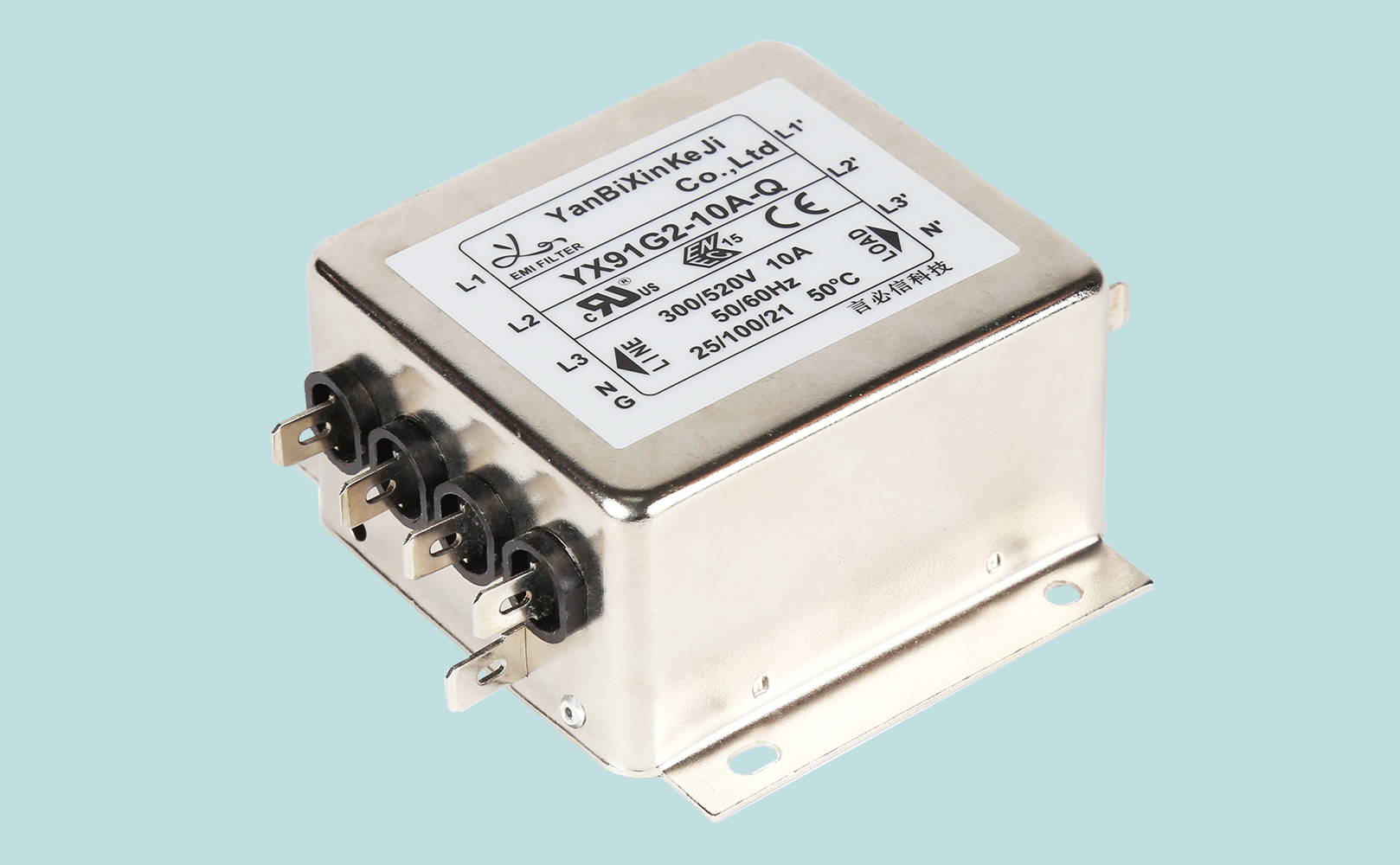

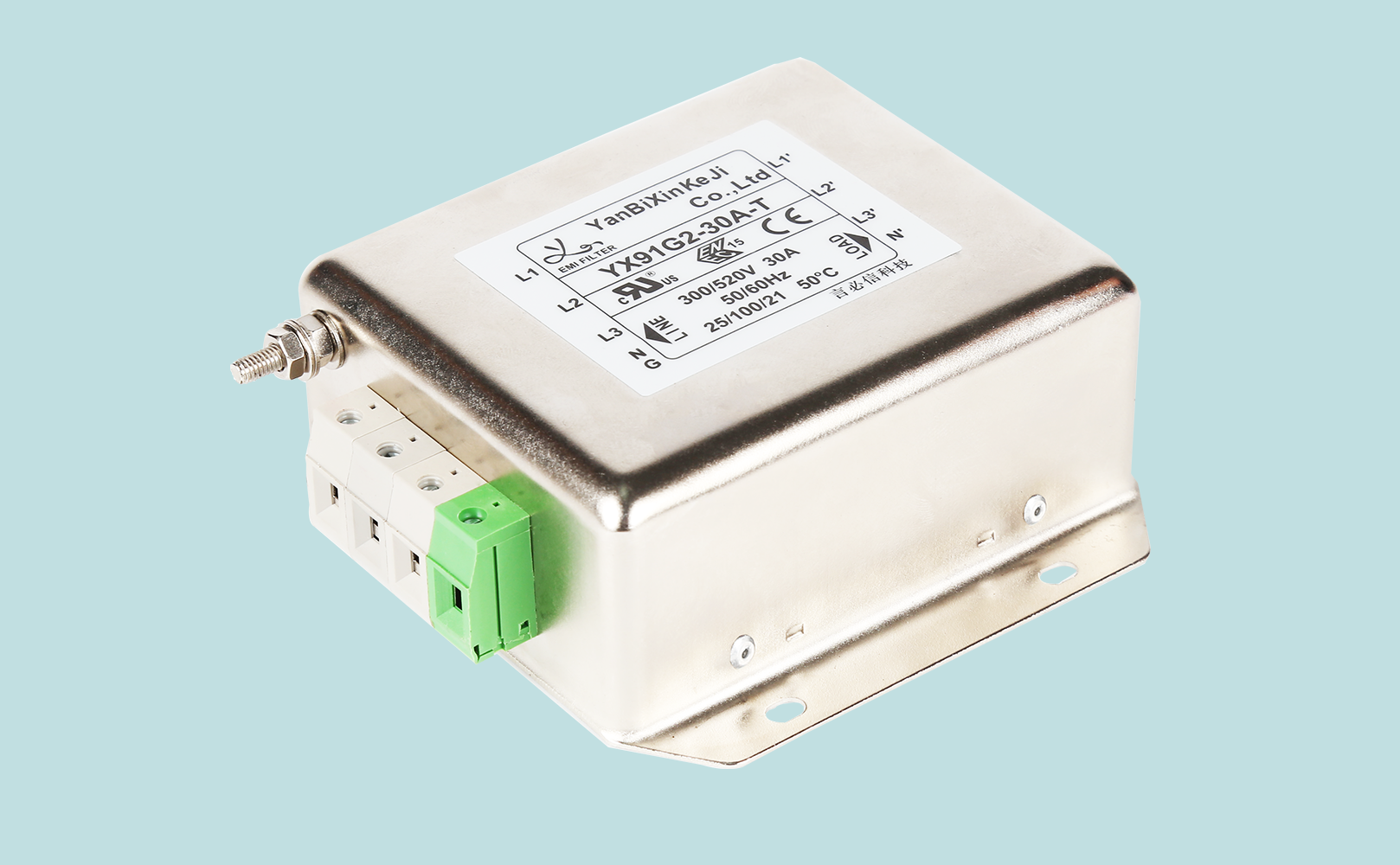

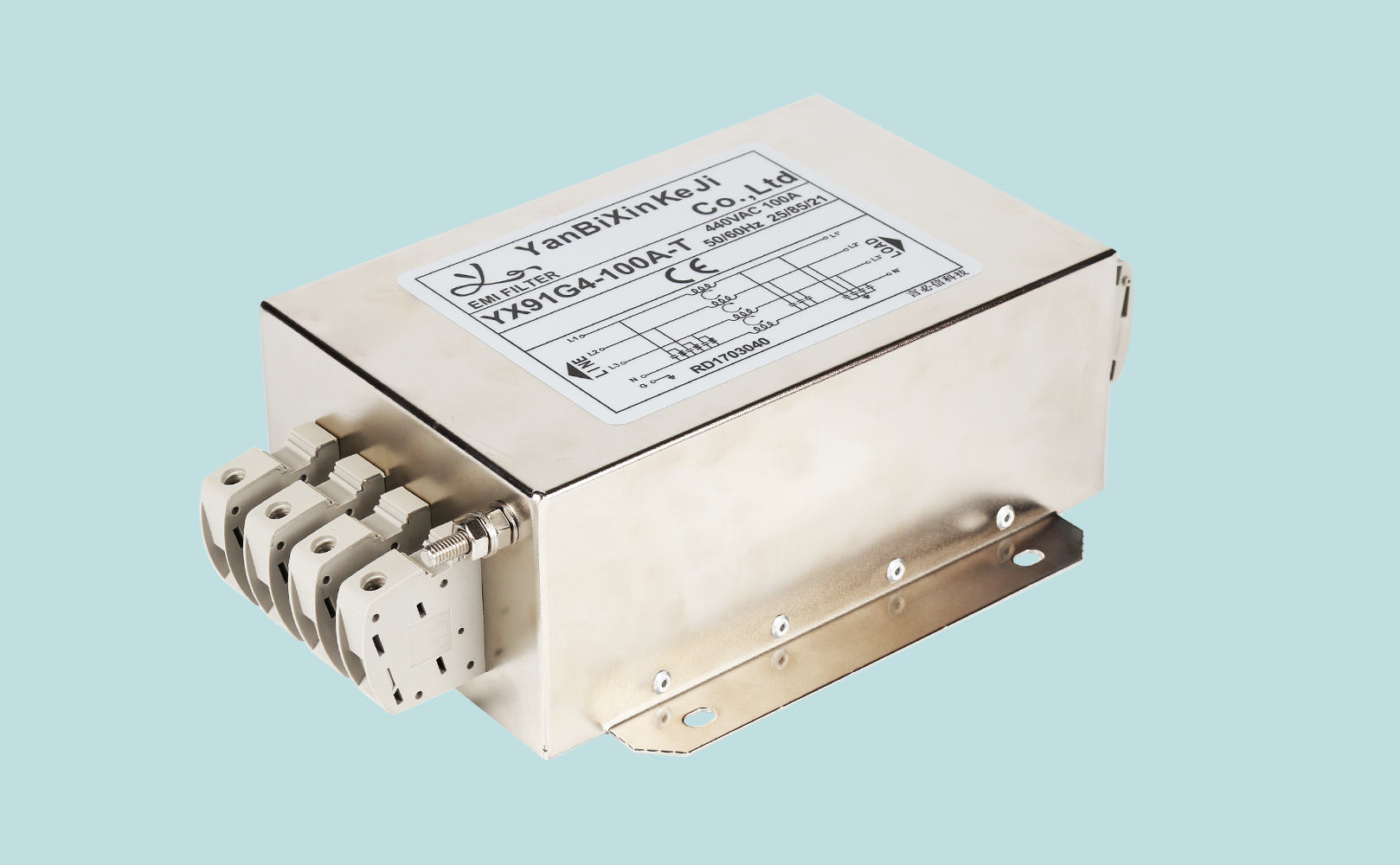

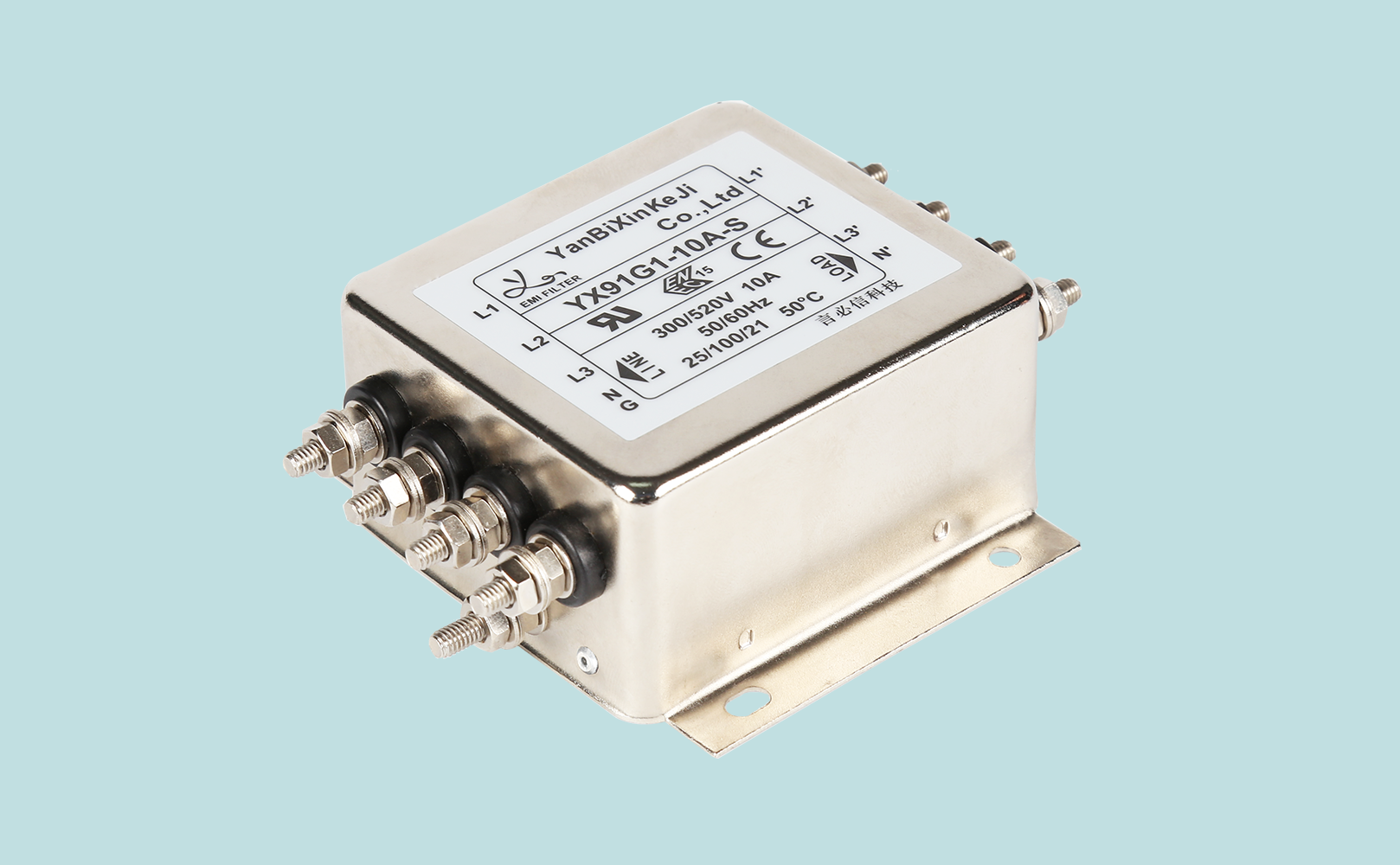

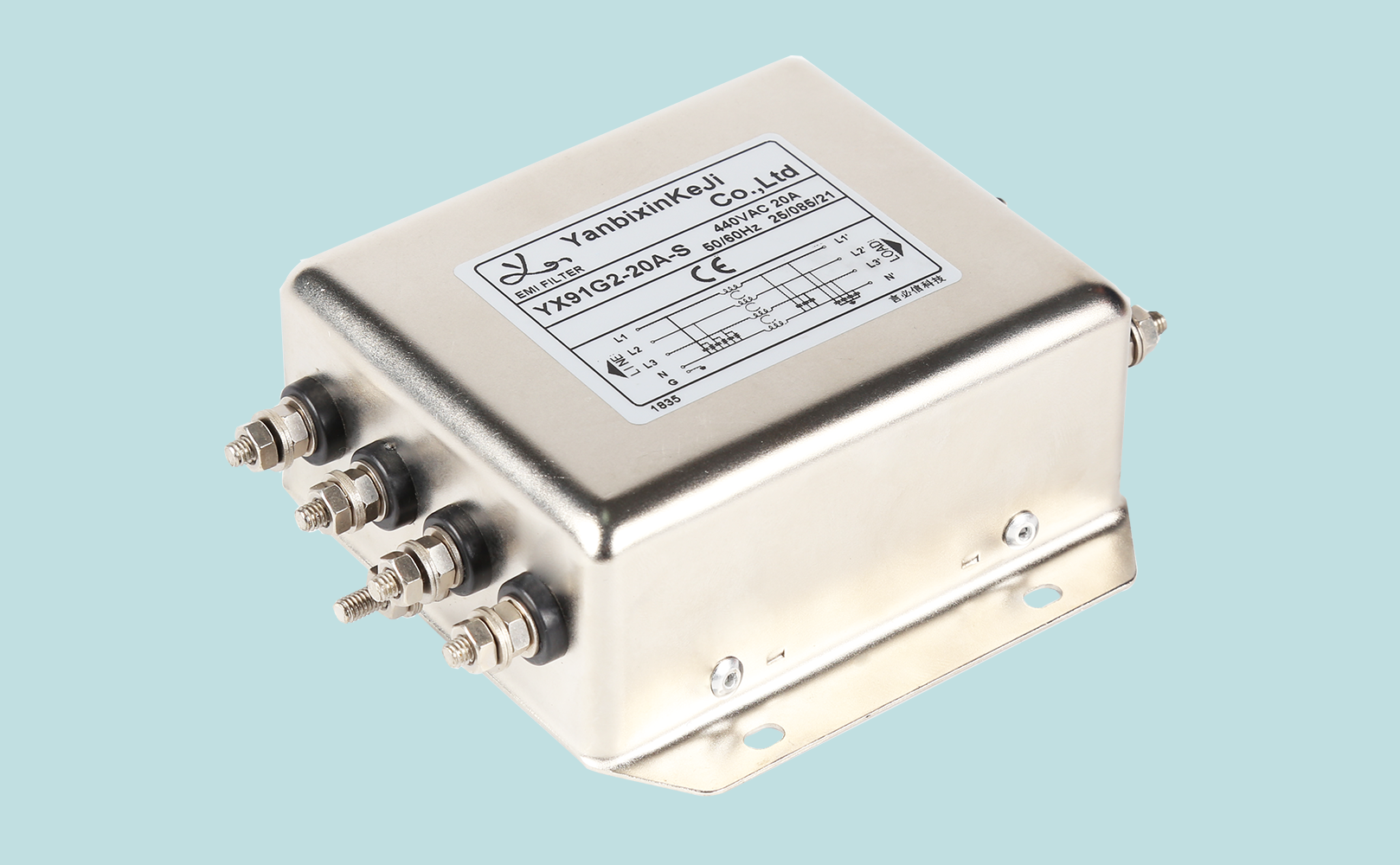

Various terminal options allow you to select the desired connection style.

--有多種端子類型可供選擇

There are a variety of parts and combinations to meet different customers' EMC tests

--有多種零件組合搭配，來滿足不同客戶整機EMC測試

Customized products according to customers' requirements

--可按客戶要求定制不同規格產品

Typical Applications 應用范圍

Applications requiring high-frequency attenuation

--需要高頻衰減的應用

High power office equipment

--大功率辦公設備

Power supplies

--供電電源

Office and data processing equipment

--辦公室和數據處理設備

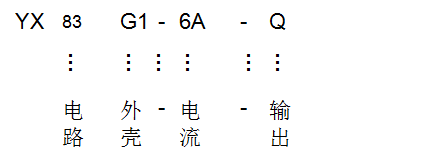

命名原則說明

Tabulates 產品列表

Model No.

Rated Current @40°C 額定電流

Terminal Options* 輸出方式

Leakage current 440V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)     額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YX94G2-3A

3A

Q

S

T

<5.0mA

Fig.1

250/440V

50/60Hz

YX94G3-6A

6A

Q

S

T

Fig.1

YX94G3-10A

10A

Q

S

T

Fig.1

YX94G3-15A

15A

Q

S

T

Fig.1

YX94G5-20A

20A

-

S

T

Fig.1

YX94G5-25A

25A

-

S

T

Fig.1

YX94G5-30A

30A

-

S

T

Fig.1

YX94G4-40A

40A

-

S

T

<10.0mA

Fig.1

YX94G4-50A

50A

-

S

T

Fig.1

YX94G4-60A

60A

-

S

T

Fig.1

YX94G4-70A

70A

-

S

T

Fig.1

YX94G4-80A

80A

-

S

T

Fig.1

YX94G4-100A

100A

-

S

T

<20.0mA

Fig.1

YX94G6-130A

130A

-

S

T

Fig.1

*Q: Fast-on 6.35x0.8mm      S: Screw lug     W: Wire UL1015 18AWG

Electrical schematic 電路圖

                            Standard type

                                Fig.1

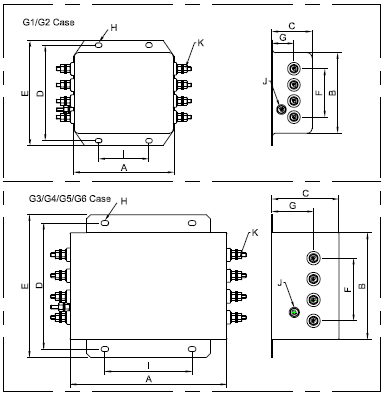

Mechanical Dimension外形圖(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)

 ——————    共模(common mode)             — — — — —   差模(differential mode)

                           3/6A                                                       10A

                             20A                                                       30A
