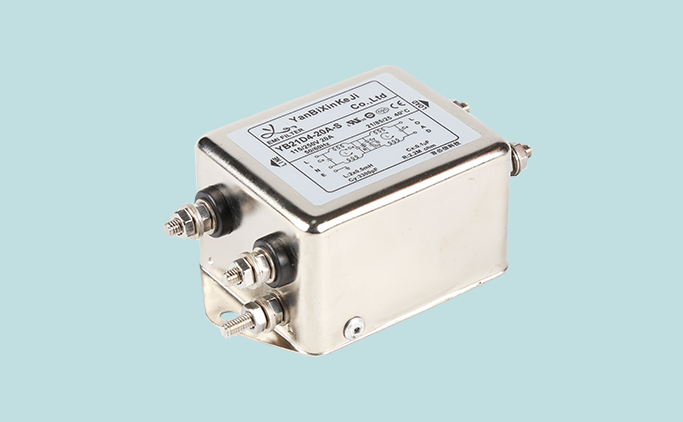

Rated currents from 1 to 200A
額定電流1~200A
General purpose filtering performance
通用濾波性能
Adopt high specification components
high quality assurance, ensure the product is working in extreme environment
采用高規格元器件，高質量保證，確保產品在極端環境中正常工作
Technical Data 技術參數
| Max continuous operating voltage(最大電壓): | 250VAC,50/60Hz |
| Operating frequency(工作頻率): | DC to 400Hz |
| Rated currents(額定電流): | 1~20A@40°C |
| High potential test voltage(耐電壓): | L-N 1450VDC |
| L/N-G 2000VAC/2250VDC | |
| Climatic category(氣候類別): | -25°C~+85°C(25/85/21) |
| Design corresponding to(設計標準): | UL1283, CSA C22.2 No.8, |
| IEC/EN 60939, | |
| CQC GB 15288/GB 15287-2008 | |
| Flammability corresponding to(防火等級): | UL 94V-0 |
Features 產品特點
Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated 2-stage line filter with increased attenuation
--防止干擾電壓的電源可能產生對設備的干擾，設計了2級濾波加強衰減。

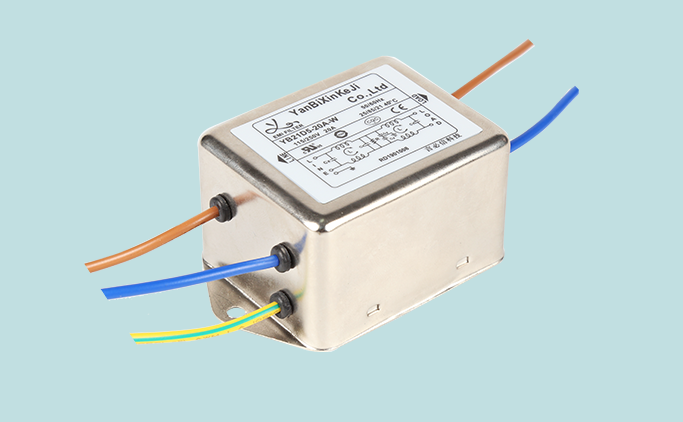

Various terminal options allow you to select the desired connection style.
--有多種端子類型可供選擇
There are a variety of parts and combinations to meet different customers' EMC tests
--有多種零件組合搭配，來滿足不同客戶整機EMC測試
Customized products according to customers' requirements
--可按客戶要求定制不同規格產品
Typical Applications 應用范圍
Electrical and electronic equipment
--電子電氣設備
Contravariant, servo industrial equipment
逆變器，伺服器等工業設備
Power converter
--電源轉換器
Switching Power Supply
--開關電源
Mechanical Dimension外形圖(Unit: mm)
| Case | E4 | D1 | D2 | D3 | D4 | D5 | F1 | F2 |
Tolerances 公差 |
|||||||||||||||||||||
| A | 44.5 | 51 | 51 | 63 | 63 | 73 | 72 | 98 | ±1 | |||||||||||||||||||||
| B | 50.5 | 33 | 51 | 51 | 51 | 56 | 65 | 80 | ±1 | |||||||||||||||||||||
| C | 30 | 29 | 21 | 29 | 38 | 45 | 39 | 41 | ±1 | |||||||||||||||||||||
| D | 61.5 | 60 | 63 | 75 | 75 | 87 | 75 | 95 | ±0.15 | |||||||||||||||||||||
| E | 70.5 | 68 | 72 | 85 | 85 | 98 | 45 | 50 | ±1 | |||||||||||||||||||||
| F | 28 | 20 | 27 | 25 | 27 | 30 | 35 | 50 | ±0.5 | |||||||||||||||||||||
| G | 10.5 | 10 | 10 | 10 | 15.5 | 16 | 22 | 24 | ±0.5 | |||||||||||||||||||||
| H | 6 | 4.5 | 4.5 | 5 | 4.5 | 4.5 | 4.2 | 4.2 | ±0.15 | |||||||||||||||||||||
| I | 4.5 | 4.2*6.2 | 4.2*6.2 | ±0.15 | ||||||||||||||||||||||||||
| J | M4/M6 | M4/M6 | ||||||||||||||||||||||||||||
| K | 6.3*0.8 | 18AWG | 6.3*0.8 | 6.3*0.8 | 6.3*0.8 | 6.3*0.8 | M4 | M4 | ±0.15 | |||||||||||||||||||||
| L | 35 | 50 | ±2 | |||||||||||||||||||||||||||
Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)
—————— 共模(common mode) — — — — — 差模(differential mode)
1A 3A
6A 10A
20A
