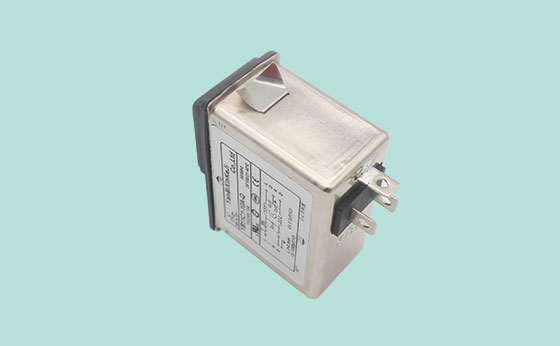

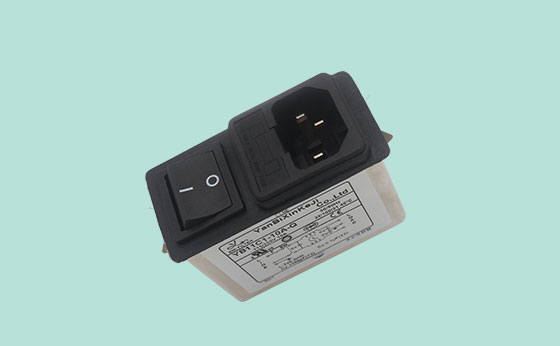

?Rated currents up to 10A
額定電流達到10A
?Single or dual-fuse holder
帶單或雙保險絲
?2-pole rocker switch
雙極性蹺板開關
?Optional medical versions((R5) type)
醫療設備專用(R5)系列
?General purpose application
一般性用途
Technical Data 技術參數
| Max continuous operating voltage(最大電壓): | 250VAC,50/60Hz |
| Operating frequency(工作頻率): | DC to 400Hz |
| Rated currents(額定電流): | 1~10A@40°C |
| High potential test voltage(耐電壓): | L-N 1450VDC |
| L/N-G 2000VAC/2250VDC | |
| L/N-G 4000VAC(R5 type) | |
|
Inrush current(沖擊電流): |
72A |
| Protection category(防護等級): | IP40 according to IEC 60529 |
| Climatic category(氣候類別): | -25°C~+85°C(25/85/21) |
| Design corresponding to(設計標準): | UL1283, CSA C22.2 No.8, |
| IEC/EN 60939, | |
| CQC GB 15288/GB 15287-2008 | |
| Flammability corresponding to(防火等級): | UL 94V-0 |
Features 產品特點
Versions to 10A are available with 1 pole rocker switch
--最高達到10A帶單極蹺板開關
There are a variety of parts and combinations to meet different customers' EMC tests
--有多種零件組合搭配，來滿足不同客戶整機EMC測試
Customized products according to customers' requirements
--可按客戶要求定制不同規格產品
Typical Applications 應用范圍
Portable electrical and electronic equipment
--便攜式電器和電子設備
Medical equipment
--醫療設備
Test and measurement equipment
--測量測試設備
Small and medium-sized machines and?household equipment
--中小型機械設備和家用設備
Single-phase power supplies,switch-mode power supplies
--單相電源，開關電源
命名原則說明
