Excellent performance/compact structure
高性能/結構緊湊
Screw-on version from front rear side
螺絲兩邊固定
Optional medical versions((R5) type)
醫療設備專用(R5)系列
Quick connect(6.35*0.8mm),solder or wire
多種輸出方式(插片端子，焊接端子，線材)
Technical Data 技術參數
| Max continuous operating voltage(最大電壓): | 250VAC,50/60Hz |
| Operating frequency(工作頻率): | DC to 400Hz |
| Rated currents(額定電流): | 16.20A@40°C |
|
|
|
| High potential test voltage(耐電壓): | L-N 1450VDC |
| L-N 250VDC(with lamp) | |
| L/N-G 2000VAC/2250VDC | |
| L/N-G 4000VAC(R5 type) | |
| Protection category(防護等級): | IP40 according to IEC 60529 |
| Climatic category(氣候類別): | -25°C~+85°C(25/85/21) |
| Design corresponding to(設計標準): | UL1283, CSA C22.2 No.8, |
| IEC/EN 60939, | |
| CQC GB 15288/GB 15287-2008 | |
| Flammability corresponding to(防火等級): | UL 94V-0 |
Features 產品特點

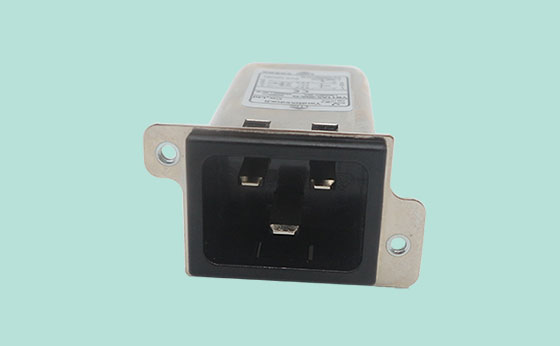

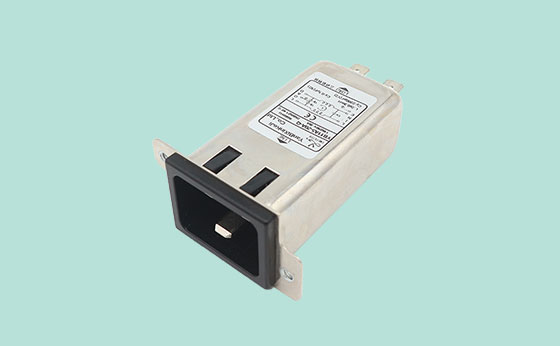

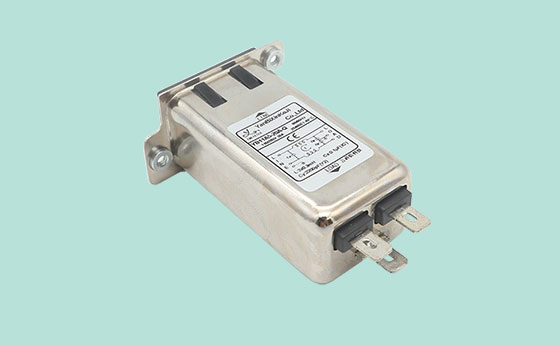

High performance and high attenuation power filters with IEC 320 socket
--帶IEC320插座高性能,高衰減電源濾波器
(R5) types comply with the requirements of IEC/EN60601-1 for creepage and clearance, leakage current and high potential testing.
--(R5)醫療專用產品依據IEC/EN60601-1標準對安全間隙，低漏電流和超高耐壓要求設計。
There are a variety of parts and combinations to meet different customers' EMC tests
--有多種零件組合搭配，來滿足不同客戶整機EMC測試
Customized products according to customers' requirements
--可按客戶要求定制不同規格產品
Typical Applications 應用范圍
Specially designed for LCD and PDP TV,medical applications,general electrical appliances.
--專門為LCD，PDP，醫療儀器，電源設備而設計
Medical equipment
--醫療設備
Test and measurement equipment
--測量測試設備
Small and medium-sized machines and?household equipment
--中小型機械設備和家用設備
