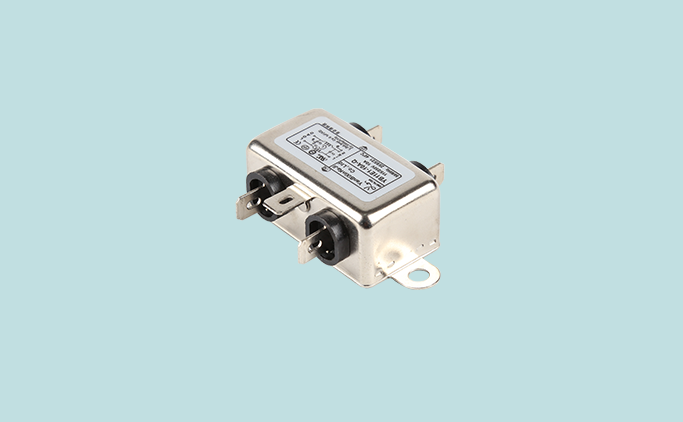

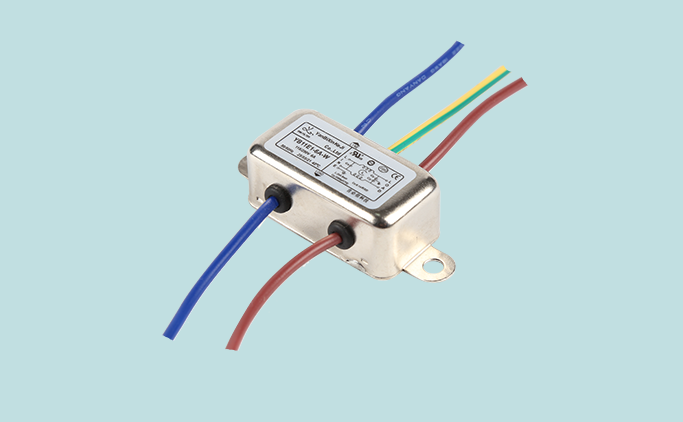

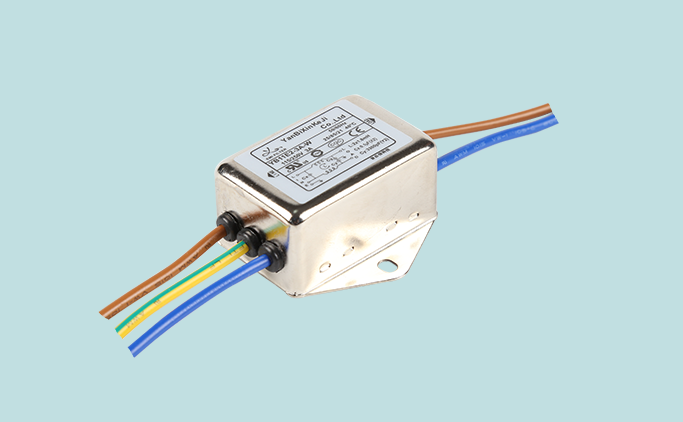

Rated currents from 1 to 10A
額定電流1~10A
General purpose filtering performance
通用濾波性能
Optimized for DC supplied applications
優化直流供電應用
Approvals(認證):
Technical Data 技術參數
| Max continuous operating voltage(最大電壓): | 250VAC,50/60Hz |
| Operating frequency(工作頻率): | DC |
| Rated currents(額定電流): | 1~10A@40°C |
| High potential test voltage(耐電壓): | L-N 1450VDC |
| L/N-G 1414VDC | |
| Climatic category(氣候類別): | -25°C~+85°C(25/85/21) |
| Design corresponding to(設計標準): | UL1283, CSA C22.2 No.8, |
| IEC/EN 60939, | |
| CQC GB 15288/GB 15287-2008 | |
| Flammability corresponding to(防火等級): | UL 94V-0 |
Features 產品特點
Can be used to cover a broad range of usage and they offer a good size/amperage ratio
--緊湊的體積，能夠應用在各種場合中。
YD11 filters are also available as two-stage filters(YD21) for more noisy environmment
--YD11系列濾波器也可以串2個當做YD21系列產品使用在嘈雜環境中。
There are a variety of parts and combinations to meet different customers' EMC tests
--有多種零件組合搭配，來滿足不同客戶整機EMC測試
Customized products according to customers' requirements
--可按客戶要求定制不同規格產品
Typical Applications 應用范圍
Electrical and electronic equipment
--電子電氣設備
Datacom equipment
--通訊設備
Office automation equipment
--辦公自動化設備

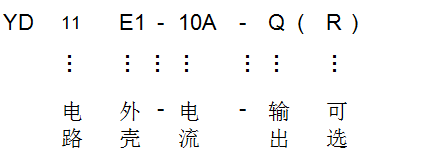

命名原則說明
Tabulates 產品列表
| Model No. |
Rated Current @40°C 額定電流 |
Terminal Options* 輸出方式 |
Bleeder resistor(optional) 泄放電阻R(可選) |
Electrical Schematic 電路圖 |
Rated Voltage(V) 額定電壓 |
Operating Frequency(Hz) 工作頻率 |
|||||||||||||||||||||||||||||||
| 型號 | |||||||||||||||||||||||||||||||||||||
|
|
|
|||||||||||||||||||||||||||||||||||
| YB11E1-1A | 1A | Q | - | W | - | Fig.1 | 12~250 | DC | |||||||||||||||||||||||||||||
| YB11E1-3A | 3A | Q | - | W | - | Fig.1 | |||||||||||||||||||||||||||||||
| YB11E1-6A | 6A | Q | - | W | - | Fig.1 | |||||||||||||||||||||||||||||||
| YB11E1-8A | 8A | Q | - | W | - | Fig.1 | |||||||||||||||||||||||||||||||
| YB11E1-10A | 10A | Q | - | W | - | Fig.1 | |||||||||||||||||||||||||||||||
| YB11E2-1A | 1A | - | - | W | - | Fig.1 | |||||||||||||||||||||||||||||||
| YB11E2-3A | 3A | - | - | W | - | Fig.1 | |||||||||||||||||||||||||||||||
| YB11E2-6A | 6A | - | - | W | - | Fig.1 | |||||||||||||||||||||||||||||||
| YB11E2-8A | 8A | - | - | W | - | Fig.1 | |||||||||||||||||||||||||||||||
| YB11E2-10A | 10A | - | - | W | - | Fig.1 | |||||||||||||||||||||||||||||||
| YB11E3-1A | 1A | Q | - | W | - | Fig.1 | |||||||||||||||||||||||||||||||
| YB11E3-3A | 3A | Q | - | W | - | Fig.1 | |||||||||||||||||||||||||||||||
| YB11E3-6A | 6A | Q | - | W | - | Fig.1 | |||||||||||||||||||||||||||||||
| YB11E3-8A | 8A | Q | - | W | - | Fig.1 | |||||||||||||||||||||||||||||||
| YB11E3-10A | 10A | Q | - | W | - | Fig.1 | |||||||||||||||||||||||||||||||
*Q: Fast-on 6.35x0.8mm S: Screw lug W: Wire UL1015 18AWG
Electrical schematic 電路圖
Standard type
Fig.1

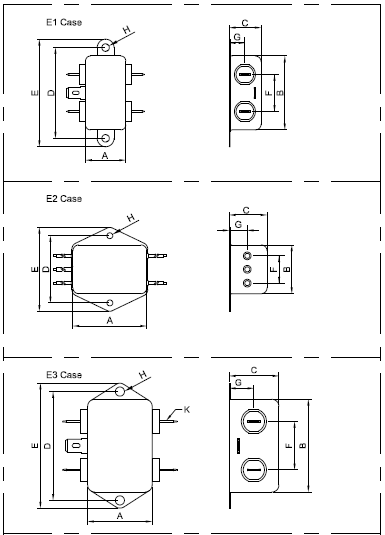

Mechanical Dimension外形圖(Unit: mm)
| Case | E1 | E2 | E3 |
Tolerances 公差 |
||||||||||||
| A | 24 | 44 | 32 | ±1 | ||||||||||||
| B | 45 | 29 | 46 | ±1 | ||||||||||||
| C | 19 | 22 | 22.5 | ±1 | ||||||||||||
| D | 54.5 | 40 | 54 | ±0.15 | ||||||||||||
| E | 64.5 | 50 | 62 | ±1 | ||||||||||||
| F | 23 | 15 | 24 | ±0.5 | ||||||||||||
| G | 9.5 | 8 | 12.5 | ±0.5 | ||||||||||||
| H | 4.5 | 4.7 | 4.5 | ±0.15 | ||||||||||||
| I | 3.5 | ±0.15 | ||||||||||||||
| J | ||||||||||||||||
| K | 6.3*0.8 | 18awg | 6.3*0.8 | ±0.1 | ||||||||||||
Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)
—————— 共模(common mode) — — — — — 差模(differential mode)
1A 3A
6A 10A
20A
